Heat Pump Water Heater
Heat Pump Water Heater
When it comes to water heaters, Vietnamese users are familiar with electric water heaters, and in recent years solar water heaters. As user demands increasingly require more criteria, technology is also rapidly developing to meet the market.
One of the most recent hot water heater solutions is the Heat pump water heater, also known as Air energy water heater.
Let's come with GikaSun to find out why this type of water heater is worth choosing, not only suitable for households but also especially suitable for installation for business needs.
What is a heat pump water heater? Principle of operation
Heat pump water heater (Heat Pump) is a device that heats water with natural energy from the air and energy from the sun.

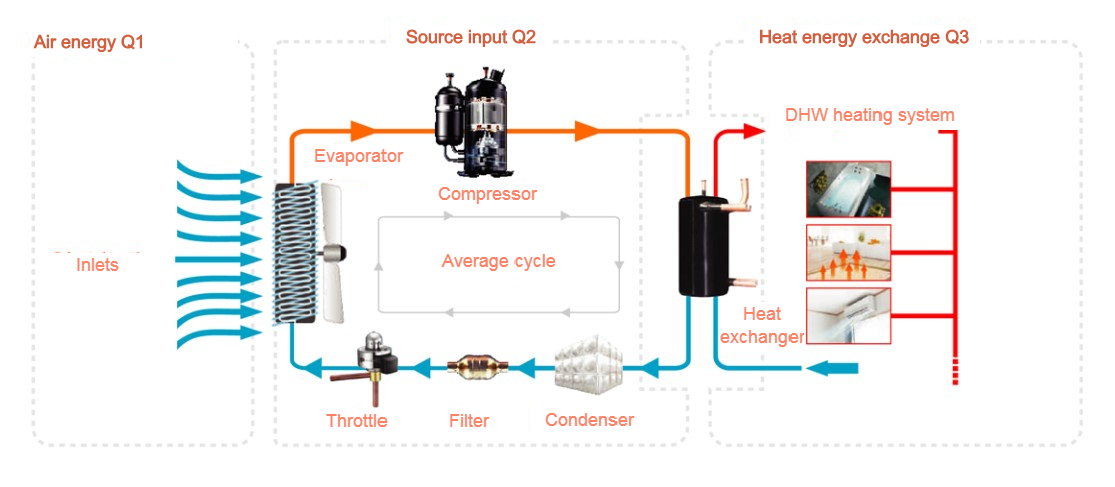

Heat Pump works on the principle of thermodynamics that transfers heat from a high temperature to a lower temperature. The heat of the air after being absorbed, the increase will be transferred to cold water through a heat exchanger to reach the required temperature. Hot water will be stored in the insulation or transmitted to equipment used.
The machine can operate in 2 directions are hot and cold, can be used for heating and cooling.
Advantages and disadvantages of Heat pump water heater?
Advantages
- Absolutely safe, no electricity leakage.
- Can be used in all environments, all weather conditions, without the sun.
- Very long durability (life up to 20 năm)
- The cost of warranty is very low and the machine is very rarely damaged.
- Products using natural energy sources are air and solar energy so save electricity up to 90% compared to other types of water heaters.
- The heat pump capacity generates 4 times more heat than conventional machines, can provide a large amount of water suitable for bathtubs and tubs.
- Have hot water right away when you need to use it, not have to wait as long as conventional water heaters.
- Both modern and civilized, while contributing to environmental protection.
Disadvantages
- The price is higher than solar water heater and electric water heater.
- Maybe a little noise due to compressor operation.
- Electricity must be provided to operate the initial rapid heating.
Types of heat pump water heaters
There are two types of heat pump water heaters: for households and businesses such as motels, swimming pools, hotels, schools, hospitals, etc.
Household:
For families with 2 bathrooms or more hygienic places, the electricity consumption will be quite large, must have many heating devices that are expensive, more unsafe during use. Universal water heaters will age very quickly and lead to failures that are dangerous to the user.
But with a heat pump water heater, only one is needed to use hot water for your entire home.
Hot water heat pump
1HP - 3HP (220V)
- GKS – 1HP
- GKS – 1.5HP
- GKS – 2HP
- GKS – 3HP
3.325 KW – 5.1 KW – 7.2 KW – 10.3 KW
0.86 KW – 1.24 KW – 1.79 KW – 2.55 KW
220V – 240V ~ 50Hz
- Norm: 55 degrees
- Maximum: 60 degrees
0.71 – 109 – 145 – 225
76 – 0.94 – 1.34 – 2.35
Computer central processing unit (linear control)
From -10 degrees to 43 degrees C
Business:
Having all of these factors together, this product will be very useful for business. These places often need to use large amounts of water, Heat Pump heat pump will be the perfect choice for safety and cost-effective optimization.
The machines used for business establishments have a larger heating capacity and temperature than those used for families, which can be used for steaming or sterilizing bottles in schools and hospitals.
Depending on the scale and use needs of each project, you choose to install equipment with appropriate capacity.
Hot water heat pump
3HP - 30HP (380V)
- GKS – 3HP
- GKS – 5HP
- GKS – 6HP
- GKS – 8HP
- GKS – 10HP
- GKS – 12HP
- GKS – 15HP
- GKS – 20HP
- GKS – 24HP
- GKS – 30HP
2.57 KW – 4.45KW – 5.3KW – … – 27.8KW
Norm: 55 degrees - 60 degrees
From 240 - 2,430 liters
Central processing unit (linear control)
From -10 to 43 degrees C
PRODUCT
FREE COSULTATION
Please leave your information, GikaSun will contact you as soon as possible. Or call the Hotline for the best support.
- 0905 16 88 28
- baogiakhang@gmail.com
- 31 Nghiem Xuan Yem St., Ngu Hanh Son Dist., Da Nang city

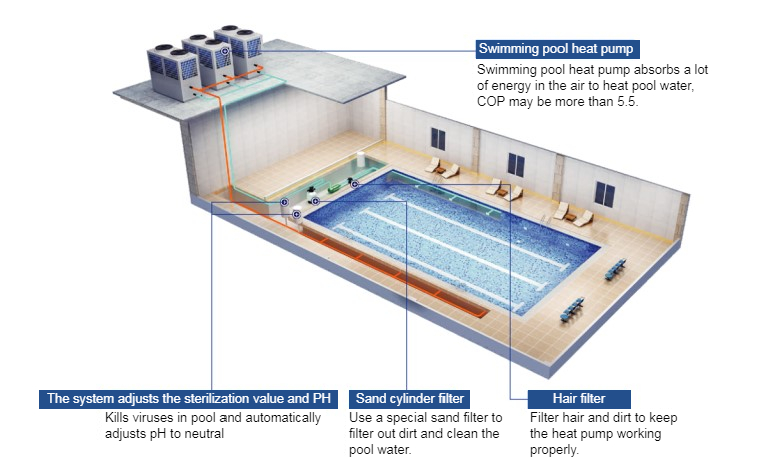

Hot water heat pump system for swimming pools
This is a hot water heat pump system for a villa pool, or business

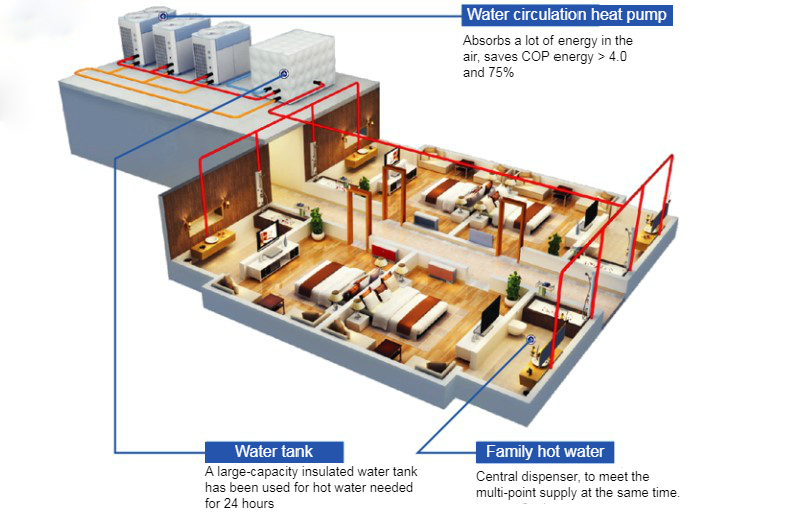

Hot water heat pump system for the apartment
Here is the diagram to install a heat pump water heater system for households:
